Electroline ONT Login & Configuration Manual for First time

admin
March 7, 2024
ElectroLine FTTH ONT, Login Router

Electroline ONT Login And Setup First Time

Elctroline ONT or ONU login for the first time to configure and change the Wireless name and password. Login Electrolink FTTH ONT or ONU device is similar to login Netlink ONT, SyroTech fiber ONT modem as well as any other that is powered by Vsol Fiber ONT. Login Electroline fiber ONT device using LAN cable or ONT with WLAN can using Wireless as well.

You can use this login guide to access ELECTROLINE 1GE+1FE+1POTS+WIFI ONU HG323RW as well as Multiple LAN ports with Dual-band Wifi. ONT device managed and configured by FTTH  GPON or EPON OLT device that is installed at ISP NOC and centralized monitoring and managing.

If you still using the default WiFI SSID and password for your Fiber internet connection and looking to change it then you can follow this user manual to log in Electroline fiber ONT modem router from your computer or Laptop. Electroline fiber ONT modems need a default login username and password along with login IP address that is usually available on the device sticker. Find the default login username and password for Electrolin fiber Modem below.

  • login VSOL Fiber OLT &192.168.8.100/192.168.8.200

Electroline Fiber ONT modem Default Login Credentials

Default credentials for XPON ONT, GPON ONT, GEPON ONT as well as EPON ONT printed to sticker bottom side. Check if the default Wireless SSID and password for the ONT device along with the login username and password printed.



Electroline Default Login IP address-192.168.100.1

Normal user Default username -admin

Default password-admin

Super User Login username – Electroline

Super login password– adminElectroline

Electroline Default WiFI name and password

  • List of Default Login IP Address, Username and password

2.4Ghz default SSID– Electroline_SSID2G

2.4Ghz Password- Electroline_pass2G

5Ghz default SSID– Electroline_SSID5G

5Ghz Password– Electroline_pass5G

Check your ONT unit login credentials and follow the next steps to connect and login from the browser.



Electroline Connection and Login from Browser

To login the Electroline Fiber ONT router you need a connection either using a wired or wireless connection from a web browser.

In ONT/ONU device you get an Ethernet port single or multiple depending on the ONT model number and PON port as well as if supports voice then Fx ports for telephone. If the ONT device supports Wifi then you will also see a WiFi antenna for a Wi-Fi signal.

  • Unbox your Fiber ONT Modem if first time setup.
  • Connect the Fiber cable coming from your internet provider to the PON port beside the Ethernet port or in some models its bottom side.
  • Use LAN cable from ONT LAN port to Desktop /WiFi Router/Network Switch if the modem is without WIFI.
  • Power ON ONT with DC adapter comes with the box.

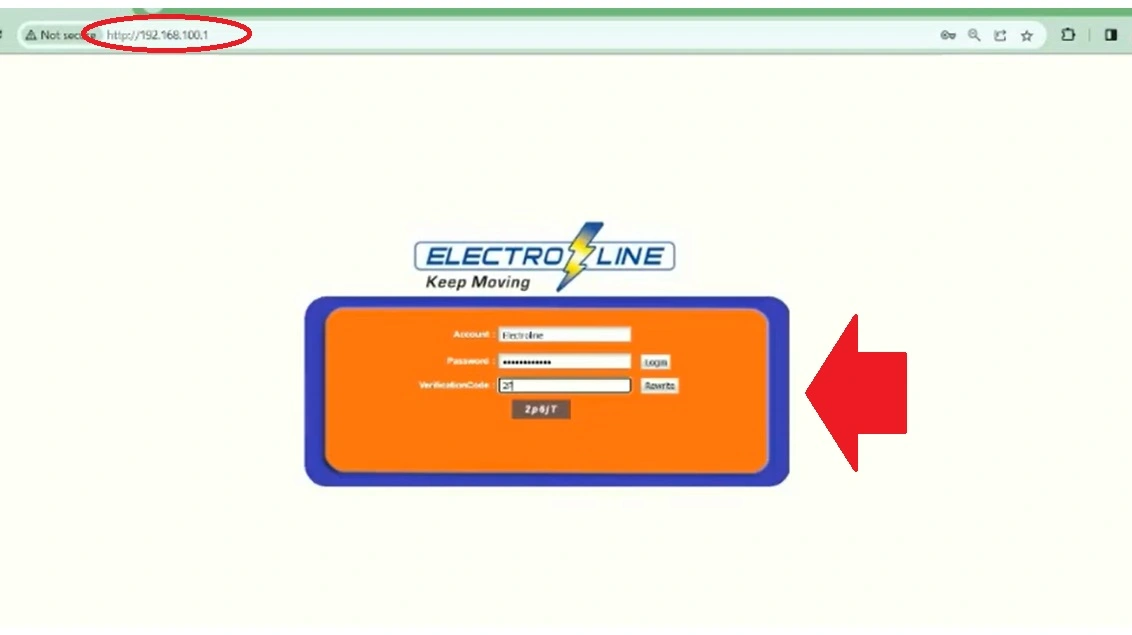

  • Open the web browser and access http://192.168.100.1 and use the default login username and password “admin”.
  • After login, you will get an ONT settings control panel where you need to configure WAN internet settings, Wireless settings, and other security configurations to make your internet more secure.



Change Wireless SSID and Password

Electroline default WIFi password and SSID name are available on the sticker so it is important to change the name and password during the first time login.

Go to the WLAN tab from the top settings menu

Under the WLAN menu you will get 2.4G and 5.8G wireless settings.

Wireless Settings 2.4Ghz

SSID Name– Change WIFI name for 2.4Ghz

Channel- Auto

Channel Bandwidth– Auto

2.4Ghz Wifi Password

WiFi Security Key- WPA/WPA2_PSK_AES

WiFi Passphrase– Create a WIFI password here for the 2.4Ghz Band.

After 2.4Ghz wireless settings change 5.8Ghz Settings also if your ONT supports Dual band Wifi. For single-band ONT only 2.4Ghz WiFi settings are available.

  • Nokia Fiber ONT Login Manual | G-240W

Change Electroline ONT default Login Password

There are two users in the Electroline ONT device one is a normal admin user and the second is a super user with all administrator rights. You can use both user login passwords one by one.

Go to System Tools from the top menu.

Under system tools – User account

Choose the user type you want to change admin user password or superuser password.

Old password- admin (for normal user admin)

New password– create a new password for the admin user.

Confirm password– confirm password.

The same goes for super users to update their default login password and confirm settings.



If you forget your login password and are unable to access ONT settings because wrong username and password error than follow the steps to factory reset your Electroline ONT device.

  • Factory Reset Huawei FTTH ONT Modem Router?

How to Factory Reset Electroline Fiber ONT

Making a Factory reset ONT device will erase all configuration and restore configuration to default mode.

You can reset the Electroline ONT device using the reset button as well as the login method if you can access settings from the web browser.



  • Power ON FTTH ONT ONU modem device.
  • Locate a small reset button beside the Ethernet port.
  • Press and hold the reset button for 10 seconds and monitor the LED lights.
  • ONT will restart after excusing the reset command and restoring to default settings.
  • After the reset process is complete you can access ONU with the default Electroline login IP address and username and password printed on the sticker.



This is a simple Electroline ONT Configuration Manual to log in and setup for the first time with your fiber internet connections. You can use this manual to login your Electroline single band ONT, Dual band ONT as well as Xpon ONT without WIFI and any other fiber Modem from Electroline.
